High-performance structural steel shelves designed for modern supermarket layout optimization and load capacity safety.
How modern warehouse retail layouts and structural engineering standards shape international commercial space ROI.
The supermarket shelving and display industry has shifted from passive merchandise holding to critical components of retail space optimization, consumer pathway psychology, and load-bearing safety architecture. Driven by rapid global supply chain expansions, retail operators no longer purchase just standard racks. Instead, they require multi-functional, integrated commercial rack systems that minimize spatial footprint while maximizing display density and product accessibility.
From a manufacturing standpoint, raw material chemistry and metallurgy are decisive. Low-carbon structural steels, specifically Q235B and Q355B cold-rolled steel coils, serve as the backbone. Standard supermarket upright posts and shelf brackets undergo rigorous progressive die stamping, automatic bending, and robotized structural welding. These parameters guarantee that under heavy loads—such as beverage bottles, bulk food, or hardware—each level remains structurally safe without plastic deformation or structural fatigue over a decade of high-frequency operation.
Supermarket shelving profiles must balance the human eye line of sight (the "golden zone" between 1.2m and 1.6m height) with safety constraints, allowing structural strength margins of up to 1.5x rating load limit to prevent accidents.
As supermarkets adopt buy-online-pickup-in-store (BOPIS) models, shelving configurations must accommodate both visual consumer-facing merchandising and rapid rear-side stock picking pathways.
Our electrostatic powder coating uses premium thermosetting epoxy-polyester coatings, conforming to international salt spray test standards to ensure anti-rust properties in cold rooms and damp humid regions.
Adapting display configurations to different geographical specifications, building codes, and safety protocols.
Commercial rack shelving systems require careful adjustment to match localized safety and layout norms across major trade blocks. Whether configuring a hypermarket in Munich, a convenience store chain in Tokyo, or a retail-warehouse in Dallas, localized floor designs dictate material configuration thickness and shelf spacing margins.
| Target Region | Predominant Standard & Compliance | Critical Engineering Requirements | Typical Configuration Layout |
|---|---|---|---|
| North America (US & Canada) | ANSI / RMI MH16.1, OSHA Safety Standards | Seismic base plates, safety column guards, 2" height adjustability spacing, locking pins. | Heavy-duty high-rise gondolas, integrated cash-and-carry warehouse racking. |
| European Union | EN 15635, CE Marking Directives | Deflection control values < L/200, strictly eco-friendly powder coating (RoHS), modular base legs. | Sleek double-sided central gondolas, custom wood-metal hybrid bakery shelves. |
| Asia-Pacific & MEA | JIS Z 0620, Regional Building Codes | Maximizing space height utilization, modular wire shelf inserts, high humidity rust protection. | Compact single-sided wall shelving, pegboard back panels, light-duty end caps. |
In addition to strict localized standards, structural flexibility dictates overall system return on investment. Our systems incorporate advanced grooved upright designs and customizable beam brackets, allowing stores to transition from five-shelf setups to six-shelf configurations within minutes, without specialized tools or structural integrity loss.
The convergence of physical steel shelving with digital retail technology and green supply chains.
Modern shelves are manufactured with continuous plastic or extruded aluminum profiles configured to support Electronic Shelf Labels (ESL). These tracks route power and visual indicators, allowing automated pricing updates without replacing physical labels.
Embedding RFID antennas and pressure sensors within the shelf surface allows automated inventory tracking. The system detects load changes, alerting logistics staff of out-of-stock items in real-time.
We are piloting non-VOC, bio-sourced powder formulations to reduce carbon emissions during manufacturing, aligning with zero-carbon retail targets set by global chains.
Guangdong Luyuan Import and Export Trading Co., Ltd. is a professional warehouse storage rack manufacturer and global supplier specializing in industrial racking systems, warehouse shelving solutions, and customized storage equipment. Established in 2016, the company operates a modern production facility covering 18,000㎡, integrating product design, manufacturing, quality inspection, and international trade services.
With annual export revenue reaching approximately USD 12 million and 8 years of export experience, Luyuan has developed strong capabilities in serving global customers with reliable warehouse storage solutions. The company has more than 12 years of industry experience, providing high-quality pallet racks, heavy duty racks, cantilever racks, mezzanine systems, supermarket shelving, and customized warehouse solutions.
Luyuan follows strict quality control procedures throughout the production process. All products are inspected through raw material inspection, welding quality checks, dimensional measurement, load capacity testing, surface coating inspection, and final product evaluation before shipment. The company has a professional quality inspection team of 45 members to ensure every product meets international standards.
The company has established a strong international trade background with experience in OEM and ODM cooperation. Luyuan products are exported to Europe, North America, South America, Southeast Asia, the Middle East, and Africa. Its major markets include the United States, Germany, Australia, Saudi Arabia, Thailand, and Brazil. Luyuan has built long-term cooperation with more than 850 supply chain partners, including steel suppliers, logistics providers, warehouse equipment distributors, and industrial solution providers.
With a professional R&D team and continuous innovation capability, Luyuan focuses on developing efficient, safe, and flexible storage solutions. The company owns a dedicated engineering department with 28 experienced R&D engineers specializing in structural design, warehouse layout optimization, and customized rack system development. Luyuan provides comprehensive customization options, including rack dimensions, load capacity, colors, materials, configurations, and complete warehouse planning solutions.
We leverage advanced manufacturing automation to ensure structural tolerances within ±0.1mm.
Expert answers to common engineering, procurement, and deployment questions.
High-grade, cold-rolled carbon steel (such as Q235B and Q355B) is the industry standard for commercial shelves. These grades offer an optimal balance of tensile strength, ductility, and weldability. They ensure shelving units can sustain maximum rated shelf load capacities (up to 150kg/level for standard designs) without bowing or structurally failing over time.
Load capacity is directly proportional to steel thickness. Upright frames usually feature 1.5mm to 2.5mm steel, while brackets range from 2.0mm to 3.0mm, and shelving panels are 0.6mm to 1.0mm. Proper load distribution design ensures deflection levels stay within the standard L/200 ratio (deflecting less than 1/200th of the shelf's length under load).

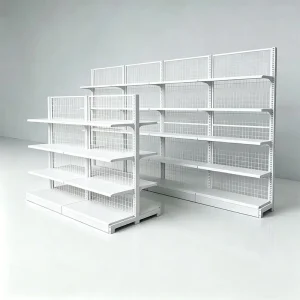

Boltless shelving utilizes interlocking groove-and-tab mechanisms, allowing rapid layout modification without tools. It is ideal for high-churn retail environments. Modular shelving, such as classic European or American style Gondolas, uses standard slotted upright posts, providing structural compatibility with wire grid backs, pegboards, and heavy-duty brackets.
We apply a multi-stage thermosetting epoxy-polyester powder coat. Prior to spraying, steel profiles undergo automated acid pickling and phosphating pre-treatments. This removes surface oil and oxides, forming a chemical barrier that protects against rust in fresh food displays, humid climates, or cold-room settings.
We support comprehensive customization. Customers can specify dimensions (upright height, shelf depth, bay width), sheet metal thickness, RAL colors, load capacities, backing designs (punched pegboard, wire mesh, plain steel panel), and wood-metal hybrid finishes. Our R&D engineering department uses advanced design software to provide custom blueprints for store configurations.
Explore our global commercial rack shelving designs, optimized for durability and load safety.
