Engineered for durability, spatial efficiency, and seamless warehouse operations.
Pallet Flow Storage, commonly referred to as gravity flow racking, is a dynamic warehouse storage method designed to maximize storage density while maintaining strict First-In, First-Out (FIFO) inventory rotation. The mechanics rely on integrated sloped roller tracks, skate wheels, or rollers positioned at a slight incline (typically 3% to 4%) within a structured racking framework. When a pallet is loaded from the entry side, gravity propels it forward toward the retrieval side at a controlled speed.
From an engineering standpoint, managing kinetic energy is the core challenge. This is achieved via speed controllers and brake rollers strategically placed along the dynamic lanes. When pallets slide down, these centrifugal brakes engage to prevent high-velocity impacts, which could compromise product safety and structural integrity. Dual-roller setups, entry guides, and pallet separation devices at the discharge face ensure forklift operators can safely extract the leading pallet without the hydrostatic pressure of the preceding pallets pushing against it. As a premium OEM/ODM Pallet Flow Storage Supplier and Exporter, we specialize in customizing these mechanical tolerances based on exact pallet weights, dimensions, and operational environments.
Established in 2016, Guangdong Luyuan Import and Export Trading Co., Ltd. is a professional warehouse storage rack manufacturer and global supplier specializing in industrial racking systems, warehouse shelving solutions, and customized storage equipment. The company operates a modern production facility covering 18,000㎡, integrating product design, manufacturing, quality inspection, and international trade services.
With annual export revenue reaching approximately USD 12 million and 8 years of export experience, Luyuan has developed strong capabilities in serving global customers with reliable warehouse storage solutions. The company has more than 12 years of industry experience, providing high-quality pallet racks, heavy duty racks, cantilever racks, mezzanine systems, supermarket shelving, and customized warehouse solutions.
Luyuan follows strict quality control procedures throughout the production process. All products are inspected through raw material inspection, welding quality checks, dimensional measurement, load capacity testing, surface coating inspection, and final product evaluation before shipment. The company has a professional quality inspection team of 45 members to ensure every product meets international standards.
Our manufacturing floor is equipped with advanced machinery to ensure high-precision execution of complex steel assemblies. Key procedures include:
Luyuan provides comprehensive customization options, including rack dimensions, load capacity, colors, materials, configurations, and complete warehouse planning solutions. Through advanced design software and professional engineering support, the company can deliver tailor-made solutions based on different customer requirements. In the past year, Luyuan launched more than 120 new products and improved existing storage systems to meet changing market demands.
Our dedicated engineering department, comprised of 28 experienced R&D engineers, specializes in structural design, warehouse layout optimization, and customized rack system development. Whether your operations require standard North American step beams or specific European roll-formed profiles, our engineering team utilizes finite element analysis (FEA) to simulate load distributions under seismic conditions, ensuring safety and compliance across global jurisdictions.
Our systems are tailored to address critical challenges in high-density warehousing.
As a leading supplier based in Guangdong, China, Luyuan leverages a robust supply chain network consisting of over 850 partners. Our strategic location provides us with ready access to high-grade raw steel (such as Q235B and Q355B structural steel), which undergoes rigorous hot-rolled or cold-rolled processing to maximize tensile strength. By utilizing raw materials sourced from Tier-1 mills, we ensure that our pallet racking columns, upright frames, and box beams remain resilient under continuous stress.
This deep supply chain integration provides our international buyers with significant structural cost advantages, high production flexibility, and shortened lead times. By coupling our advanced in-house capabilities (such as CNC laser cutting and robotic welding) with direct access to shipping hubs in Shenzhen and Guangzhou, we minimize logistics transit times, ensuring that your heavy-duty industrial rack shipments arrive on schedule and within budget.
Global procurement teams must balance structural efficiency with local safety and compliance parameters. Different jurisdictions demand adherence to specific structural safety codes, which Luyuan designs for directly:
Beyond regulatory compliance, we provide local field support, layout planning schematics (CAD and 3D modeling), and material safety datasheets (MSDS) for our electrostatic powder coatings. Our high-durability finishes protect against humidity, rust, and abrasion, which is critical for long-term safety and visual inspection protocols.
In cold chain environments, operational costs per square meter are exceptionally high. High-density storage is crucial to minimize refrigerated airspace. Pallet flow storage is ideal here because it can support deep-lane configurations (up to 20 pallets deep). Our custom-engineered low-temperature lubricants and specialty bearing steel rollers are designed to withstand temperatures down to -30°C without freezing or losing structural integrity.
For inventory governed by expiration dates, strict FIFO rotation is non-negotiable. Pallet flow racks isolate loading and unloading operations into dedicated aisles, preventing cross-contamination and inventory bottlenecks. This automated gravity movement ensures products are dispatched in the exact order they were manufactured, streamlining trace-and-recall protocols.
Technical answers regarding Pallet Flow Storage design, purchasing, and implementation.
The industry standard incline is typically between 3% and 4% (approx. 1.7 to 2.3 degrees). The exact gradient is determined by pallet weight, pallet bottom configuration, roller type, and the friction coefficient of the system. Luyuan engineers perform customized testing to determine the ideal slope for your operational loads.
We integrate centrifugal speed controllers (brake rollers) every 2 to 3 pallet positions to keep the descent speed below 0.3 m/s. Additionally, we install mechanical pallet separators at the exit face to relieve line pressure, allowing the forklift operator to safely remove the front pallet without the weight of the trailing pallets pushing against it.
Yes, standard wood pallets (such as GMA or Euro pallets) can be used, provided they are in good condition. Split, broken, or warped boards can cause pallets to hang up in the lane. For plastic pallets or configurations with bottom runners perpendicular to the flow direction, we offer full-width steel rollers or specialized multi-wheel skate tracks to ensure smooth operation.
Our capabilities cover upright frame dimensions, beam profiles, custom column gauges (12-gauge to 15-gauge steel), dynamic lane lengths, roller widths, and custom surface finishes (RAL color matching, high-durability powder coating, or hot-dip galvanization). We tailor our designs to integrate seamlessly with standard forklift types, AGVs, and automated storage and retrieval systems (AS/RS).
Luyuan operates under a ISO 9001-certified framework. We employ a dedicated 45-member quality inspection team overseeing raw material tensile checks, ultrasonic welding inspections, precision laser measurement, load-to-failure testing, and dry film thickness testing on all powder-coated surfaces. We design our systems to comply with RMI, FEM, and AS 4084 engineering standards.

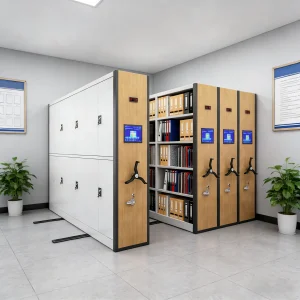

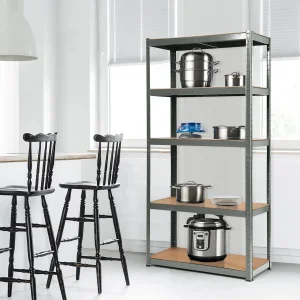

From light-duty shelving to heavy-duty automated compactors, we engineer storage for every operational scale.
